In-Place-Inclinometers & Associated Instrumentation Keynes Controls Systems Designed & Manufactured By Keynes Controls Ltd Software Ezi-Log Web based Remote Monitoring Solutions Go Home Web Shop General I-P-I Sensor Specification

Calibrated range


± 15 ,  ± 7, ± 2.5 deg   (to 259 mm/m)

Resolution


0.005% full scale

Sensor accuracy


±0.05% full scale

Operating temperature


-20 to +75°C

Dimensions


Length 230 mm x Outside diameter 72 mm

Body Material


316 Stainless Steel

Repeatability


±0.01% full scale

Ingress protection


Rated to 80 m submergence

other ranges on request - typically 200 M H20

Network Options


SDI-12 / RS485 / Modbus

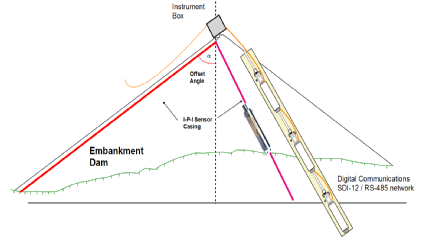

Sensor Installation Guide Fixed Angle In-Place-Inclinometer

Part Number


RS485 Digital Communications

IPI-D-30-RS485-15


Dual Axis I-P-I Solid state 30 Deg Offset +/-  15 deg range RS485

IPI-D-45-RS485-15


Dual Axis I-P-I Solid state 45 Deg Offset +/-  15 deg range RS485

IPI-D-60-RS485-15


Dual Axis I-P-I Solid state 60 Deg Offset +/-  15 deg range RS485




IPI-S-30-RS485-15


Single Axis I-P-I Solid state 30 Deg Offset +/-  15 deg range RS485

IPI-S-45-RS485-15


Single Axis I-P-I Solid state 45 Deg Offset +/-  15 deg range RS485

IPI-S-60-RS485-15


Single Axis I-P-I Solid state 60 Deg Offset +/-  15 deg range RS485

Part Number


SDI-12  Digital Communications

IPI-D-30-SDI12-15


Dual Axis I-P-I Solid state   30 Deg Offset +/-  15 deg range SDI-12

IPI-D-45-SDI12-15


Dual Axis I-P-I Solid state   45 Deg Offset +/-  15 deg range SDI-12

IPI-D-60-SDI12-15


Dual Axis I-P-I Solid state   60 Deg Offset +/-  15 deg range SDI-12




IPI-S-30-SDI12-15


Single Axis I-P-I Solid state   30 Deg Offset +/-  15 deg range SDI-12

IPI-S-45-SDI12-15


Single Axis I-P-I Solid state   45 Deg Offset +/-  15 deg range SDI-12

IPI-S-60-SDI12-15


Single Axis I-P-I Solid state   60 Deg Offset +/-  15 deg range SDI-12

Horizontal  In-Place-Inclinometer Vertical In-Place-Inclinometer Quick User Guide with Q-LOG General Sensor Specifications Fixed Offset I-P-I Sensor Range Vertical I-P-I Sensor Range

Introduction


Keynes Controls manufactures a range of In-Place-Inclinometers suitable for installation into most locations and for use in many different applications. Models are available for vertical, horizontal and fixed angular offset measurements.


All of the Keynes Controls I-P-I sensors are environmentally sealed against the ingress of moisture and dust. All models use digital communications to transmit data direct to suitable data loggers or direct to a PC/Laptop using one of the isolated USB media converters. A Free Windows application software named Q-LOG  is available to display and store  measurements from the I-P-I sensors in SI units such as mm/m Radians Deg etc.


Each sensor regardless of range can be supplied in single and dual axis and offers options for SDI-12 or RS-485 digital communications.


The sensor casing is manufactured in 316 stainless steel making it safe for deployment in the harshest of environments. The cable entries are sealed using custom PVC gold pin bulk head seals. The standard test depth for each sensor range is 80 m H20. Additional submerged range can be supplied on request.

Part Number


SDI-12  Digital Communications

H-IPI-D-15-SDI12


Dual Axis Horizontal  I-P-I Solid state  +/-  15 deg range SDI-12

H-IPI-D-75-SDI12


Dual Axis Horizontal I-P-I Solid state  +/-  7.5 deg range SDI-12

H-IPI-D-25-SDI12


Dual Axis  Horizontal I-P-I Solid state  +/-  2.5 deg range SDI-12




H-IPI-S-15-SDI12


Single Axis Horizontal  I-P-I Solid state  +/-  15 deg range SDI-12

H-IPI-S-75-SDI12


Single Axis Horizontal I-P-I Solid state  +/-  7.5 deg range SDI-12

H-IPI-S-25-SDI12


Single Axis  Horizontal I-P-I Solid state  +/-  2.5 deg range SDI-12
Horizontal I-P-I Sensor Range

Part Number


RS-485  Digital Communications

H-IPI-D-15-485


Dual Axis Horizontal  I-P-I Solid state  +/-  15 deg range SDI-12

H-IPI-D-75-485


Dual Axis Horizontal I-P-I Solid state  +/-  7.5 deg range SDI-12

H-IPI-D-25-485


Dual Axis  Horizontal I-P-I Solid state  +/-  2.5 deg range SDI-12




H-IPI-S-15-485


Single Axis Horizontal  I-P-I Solid state  +/-  15 deg range SDI-12

H-IPI-S-75-485


Single Axis Horizontal I-P-I Solid state  +/-  7.5 deg range SDI-12

H-IPI-S-25-485


Single Axis  Horizontal I-P-I Solid state  +/-  2.5 deg range SDI-12

Part Number


SDI-12 Communications

IPI-D-15-SDI12


Dual Axis Horizontal  I-P-I Solid state  +/- 15 deg range SDI-12

IPI-D-75-SDI12


Dual Axis Horizontal I-P-I Solid state  +/-  7.5 deg range SDI-12

IPI-D-25-SDI12


Dual Axis  Horizontal I-P-I Solid state  +/-  2.5 deg range SDI-12




IPI-S-15-SDI12


Single Axis Horizontal  I-P-I Solid state  +/-  15 deg range SDI-12

IPI-S-75-SDI12


Single Axis Horizontal I-P-I Solid state  +/-  7.5 deg range SDI-12

IPI-S-25-SDI12


Single Axis  Horizontal I-P-I Solid state  +/-  2.5 deg range SDI-12

Part Number


RS-485 Communications

IPI-D-15-485


Dual Axis Horizontal  I-P-I Solid state +/- 15 deg range RS485

IPI-D-75-485


Dual Axis Horizontal I-P-I Solid state +/- 7.5 deg range RS485

IPI-D-25-485


Dual Axis  Horizontal I-P-I Solid state +/- 2.5 deg range RS485




IPI-S-15-485


Single Axis Horizontal  I-P-I Solid state +/- 15 deg range RS485

IPI-S-75-485


Single Axis Horizontal I-P-I Solid state  +/- 7.5 deg range RS485

IPI-S-25-485


Single Axis  Horizontal I-P-I Solid state  +/- 2.5 deg range RS485

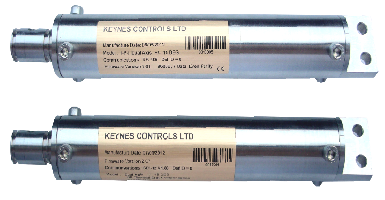

Sensor Types SDI-12 and RS-485 model I-P-I sensors I-P-I sensor mounted on A wall / Floor mounting bracket I-P-I sensor with wheel assembly Download a copy of Q-Log Further information at: http://www.aquabat.net/QLOGFree/qlogv2.html Sensor Documentation Typical Remote access interface Used by Keynes Controls I-P-I sensors To send data directly a database across Mobile phone networks Simple connection to a laptop or PC using isolated USB media converter. The Keynes Controls media converters can power the I-P-I sensors directly from a PC USB port for simplified measurement and testing. Standard Sensor Interfaces Q-LOG Applications Software Part No: USB-SDI12-Pro Or USB-485-Pro Last updated: Dec 2015 Wheel Assembly Contact US
